Name: Timemachine ROAD 01 THREE
Brand: BMC
SKU: 30001463
Price: 6649.0 CAD
Availability: OutOfStock

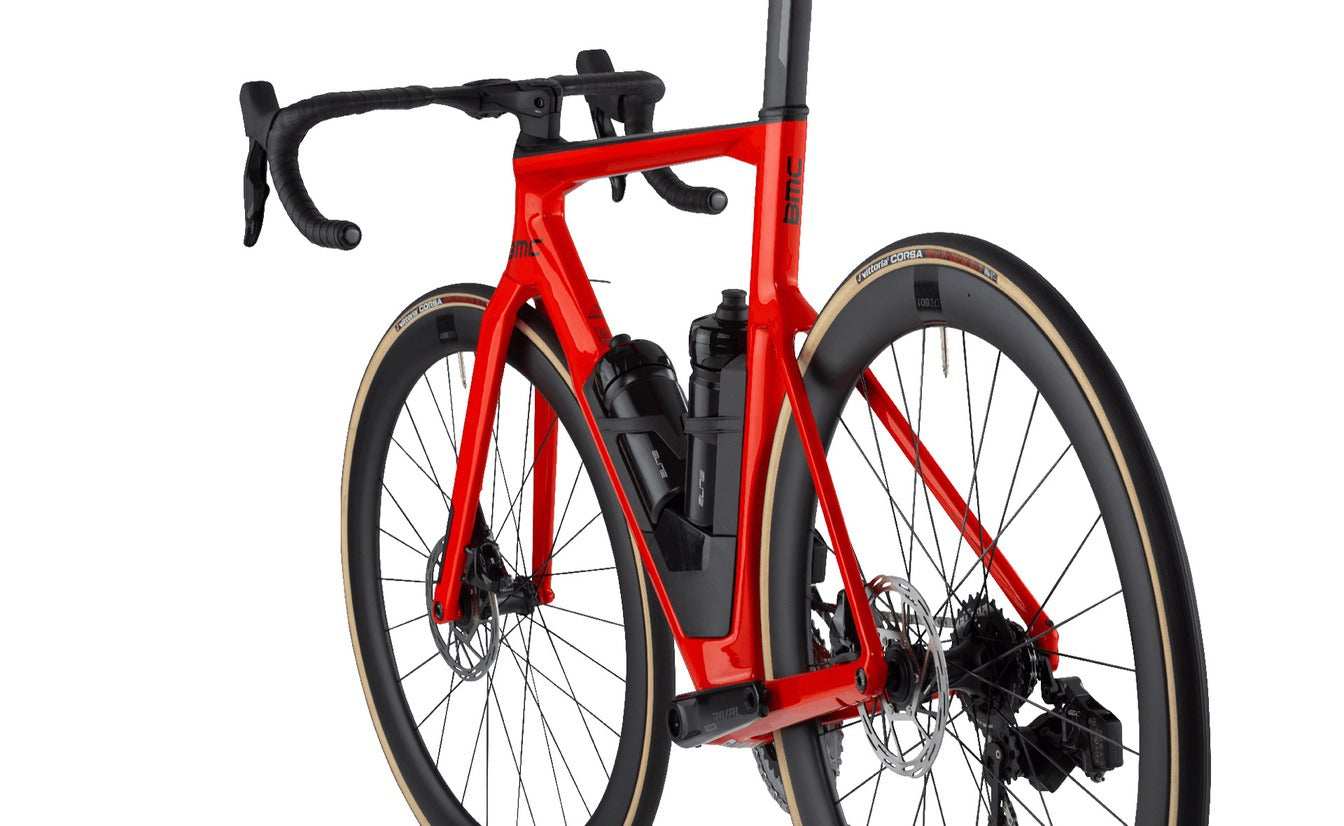

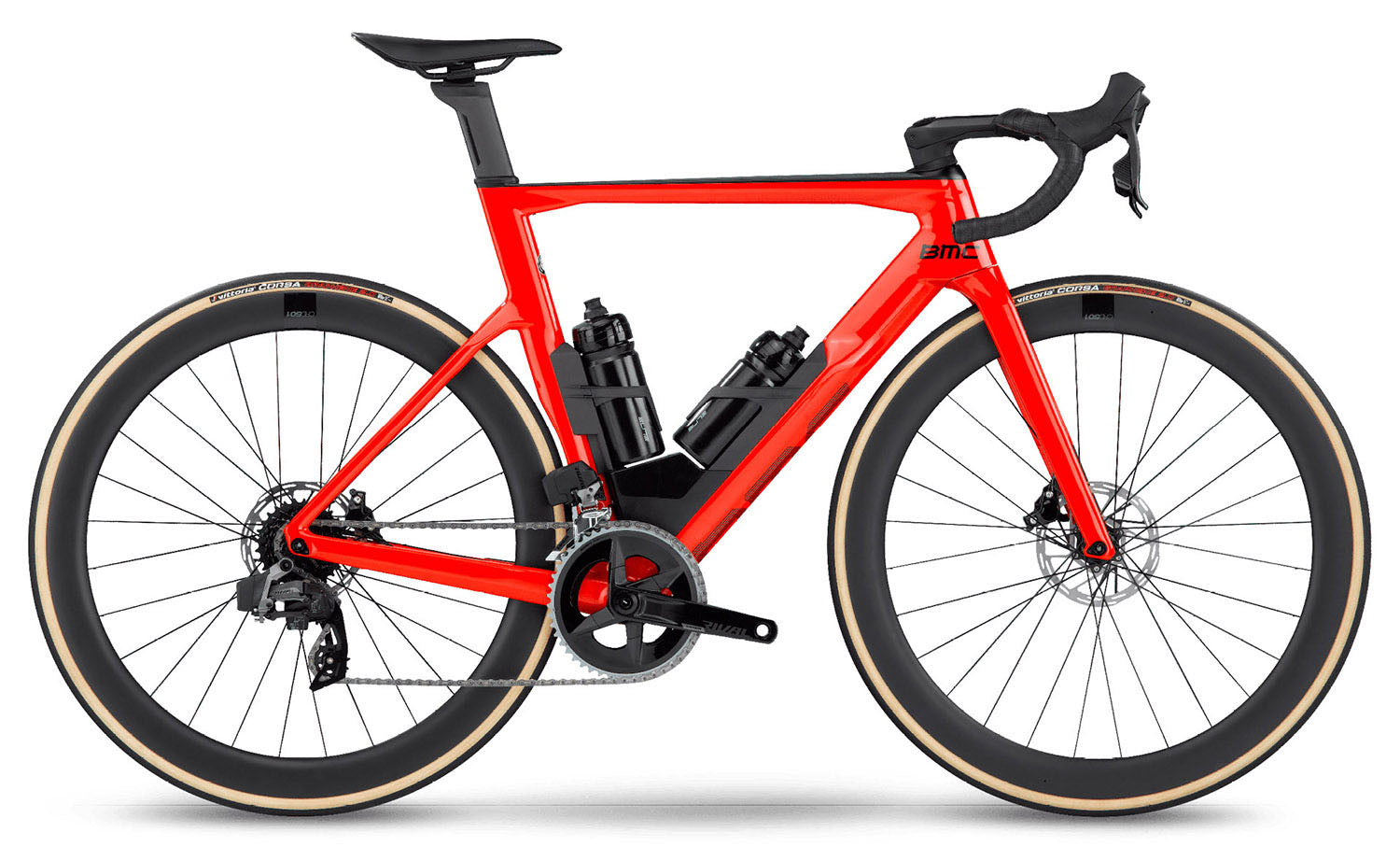

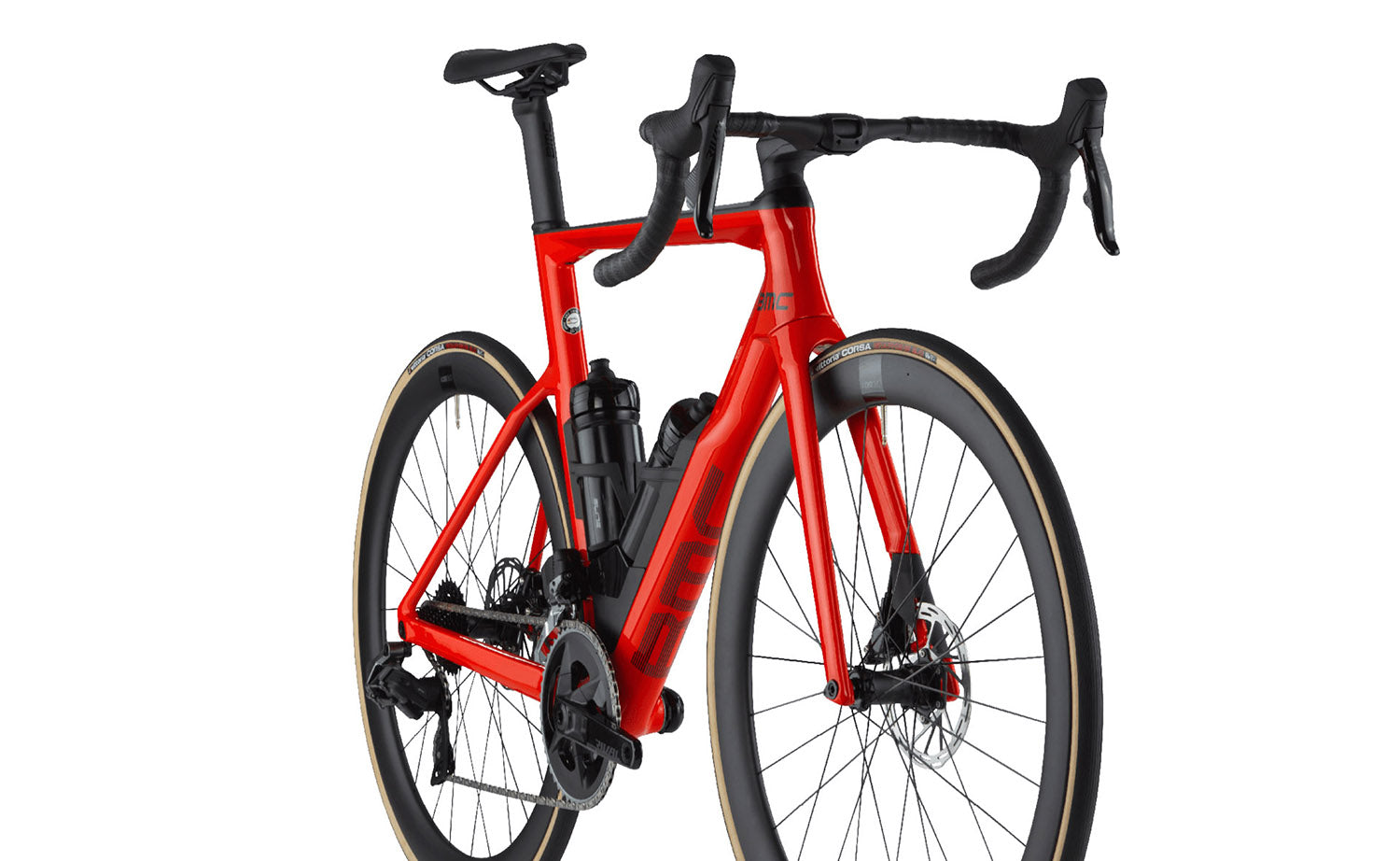

BMC Bikes | Timemachine ROAD 01 THREE RED / BLACK

RED / BLACK

BMC Archive Product

Parti e accessori compatibili

[{"id":47358339318080,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30001463","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 47","public_title":"47","options":["47"],"price":664900,"weight":12000,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872217","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47358339416384,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30001464","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 51","public_title":"51","options":["51"],"price":664900,"weight":12200,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872200","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47358339514688,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30001465","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 54","public_title":"54","options":["54"],"price":664900,"weight":12200,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872194","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47358339612992,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30001466","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 56","public_title":"56","options":["56"],"price":664900,"weight":12200,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872187","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47358339711296,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30001467","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 58","public_title":"58","options":["58"],"price":664900,"weight":12200,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872279","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47358339776832,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30001468","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Timemachine ROAD 01 THREE - 61","public_title":"61","options":["61"],"price":664900,"weight":12200,"compare_at_price":949900,"inventory_management":"shopify","barcode":"7630027872361","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Panoramica tecnica

Telaio

Telaio:
Timemachine Road 01 Premium Carbon with Aero Module Tuned Compliance Concept Speed | ICS Aero Technology Stealth Cable Routing | Integrated Seatpost clamp | Flat Mount Disc | 12 x 142mm Thru-Axle

Forcella:
Timemachine Road 01 Premium Carbon with Integrated Aero Cover Tuned Compliance Concept Speed | ICS Technology Stealth Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset (Size 47-51) 43mm offset (Size 54-61)

Cockpit

Attacco Manubrio:
BMC ICS Aero | Integrated Aero Cockpit Design

Piega:
BMC ICS Aero | Aero Top Shape | Compact Bend

Seat

Reggisella:
Timemachine Road 01 Premium Carbon Aero Seatpost | 0 | 15 | 30mm adjustable Offset

Sella:
Fizik Argo Vento R5 | 140mm

Gruppo

Guarnitura:
SRAM Rival AXS

Corona:
48-35T

Potenziometro:

Pacco pignoni:
SRAM Rival XG-1250

Ingranaggi:
10-30T

Catena:
SRAM Rival

Deragliatore:
SRAM Rival eTap AXS

Cambio:
SRAM Rival eTap AXS

Comandi:
SRAM Rival eTap AXS HRD

Rapporti:
2 x 12

Movimento centrale:
PF86 Bottom Bracket

Freni

Leve Freno / Pinze:
SRAM Rival eTap AXS HRD

Dischi freno:
SRAM Paceline

Diametro dischi:
160 / 160mm

Ruote

Cerchi:
CRD-501 Carbon | Tubeless Ready | 50mm

Mozzi:
CRD-501

Pneumatici:
Vittoria Corsa | 25mm

Accessori

Ambito di consegna:
Aerocore Bottle Cages

Informazioni aggiuntive

Sezione max coperture:
28mm

Classificazione ASTM:
Level 1

Limite di peso massimale :
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	373	381	390	395	405	413
Stack	496	520	540	555	574	598
Bar Drop	122	122	122	122	122	122
Bar Reach	66	66	66	66	66	66
Bar Width	400	420	420	420	420	440
BB Drop	70	70	70	70	70	70
Crank Length	170	170	172.5	172.5	175	175
Fork Length	379	379	374	374	374	374
Fork Rake	50	50	45	45	45	45
Front Center	577	592	594	604	620	636
Head Tube	88	113	135	150	170	196
Head Tube Angle	71.2	71.2	72	72	72	72
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	480	518	548	568	588	611
Seatpost Length	210	210	270	270	270	270
Seatpost Offset	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30	0 / 15 / 30
Standover Height	743	774	799	816	834	858
Stem Angle	-15	-15	-15	-15	-15	-15
Stem Length	100	100	110	110	110	120
Top Tube	520	535	550	560	575	590
Trail	62	62	62	62	62	62
Wheelbase	975	991	994	1004	1020	1036
