Descripción técnica
Cuadro
Cuadro:

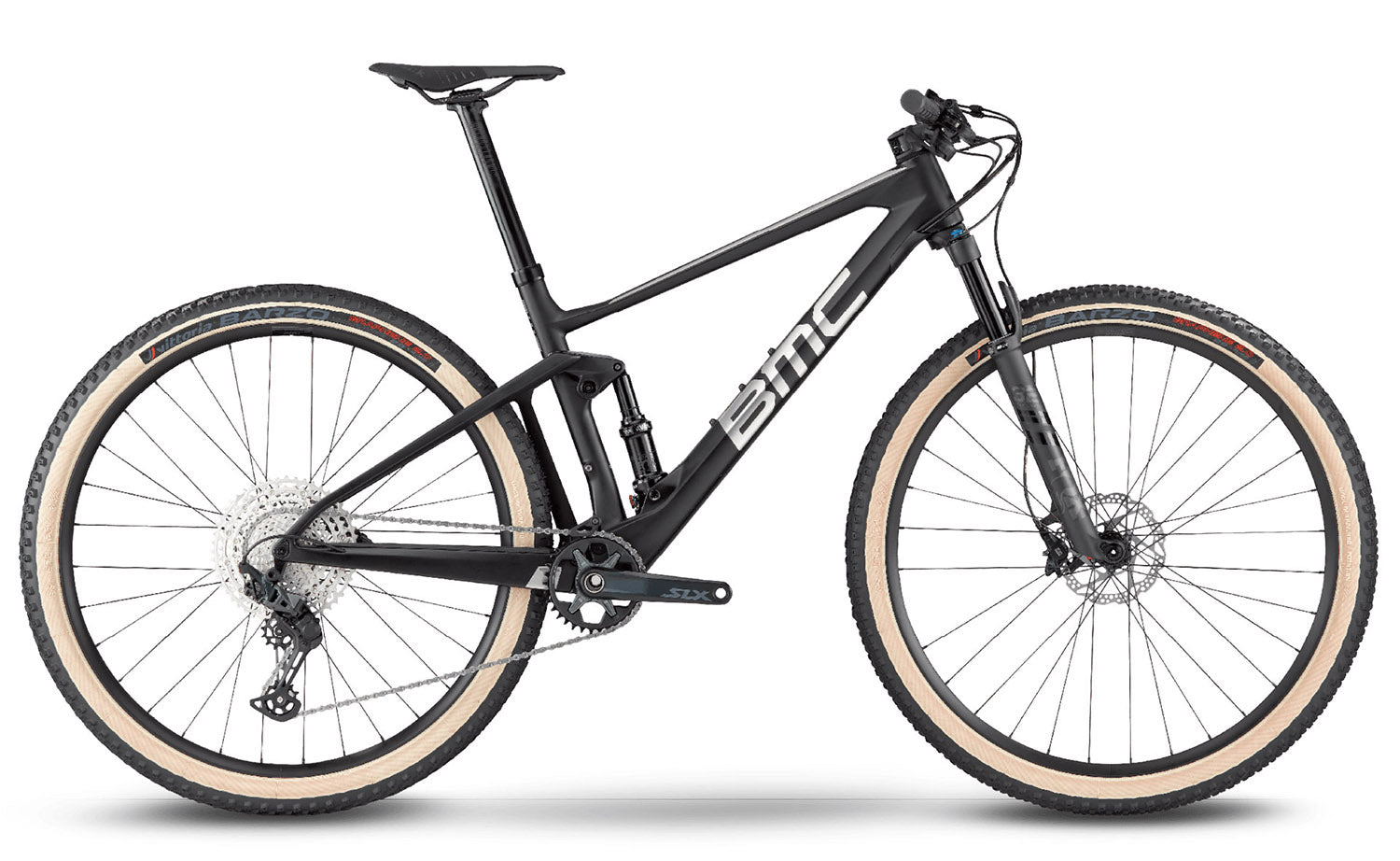

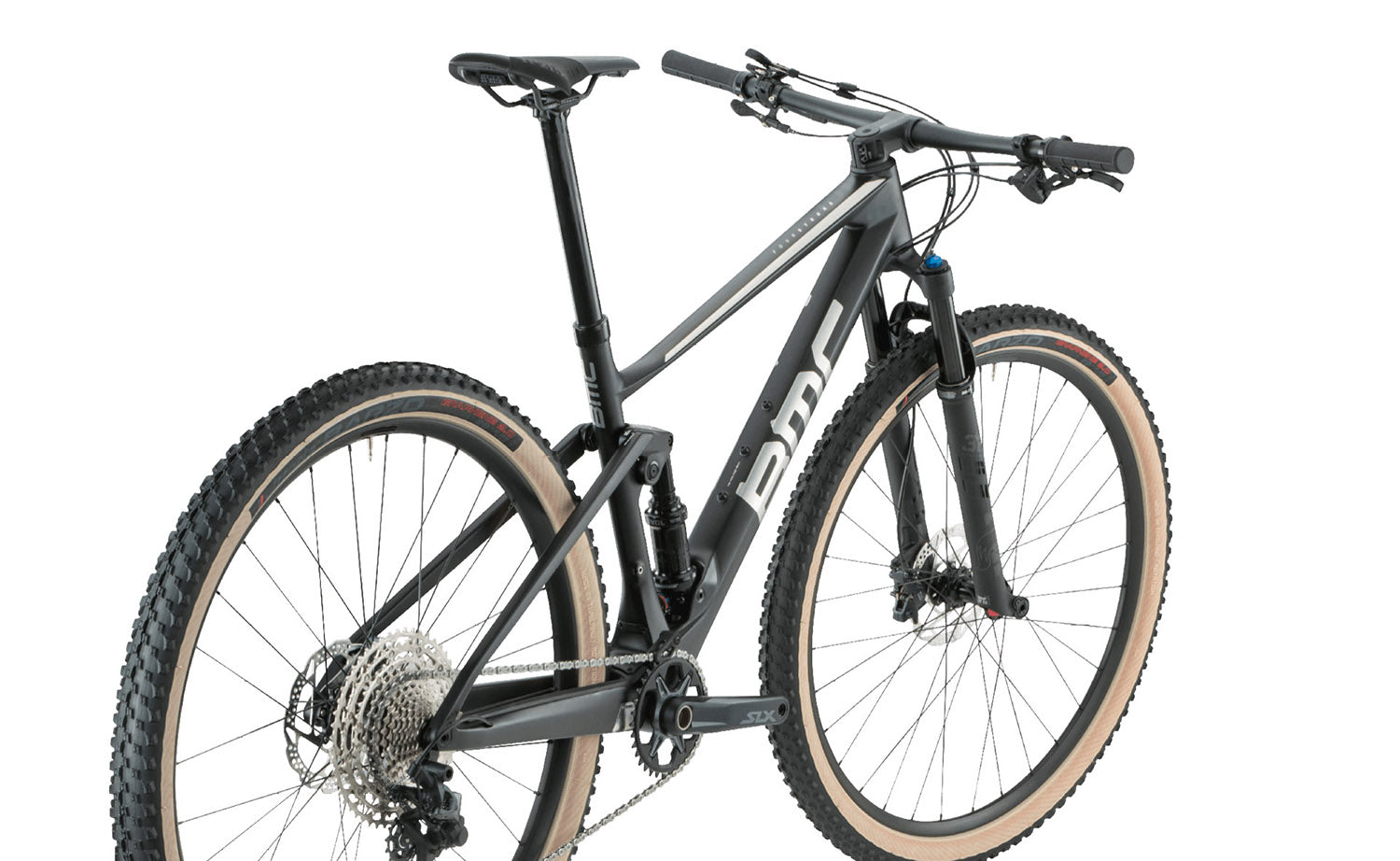

Fourstroke 01 Premium Carbon with APS Suspension System 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Horquilla:
Suspensión
Suspensión Delantera:
Fox Float 32 SC Performance
Suspensión Trasera:
Fox Float DPS Performance
Bloqueo Remoto:
Cockpit
Potencia:
#spec_stem
Manillar:
BMC MFB 02 Alloy | 750mm
Puños:
Seat
Tija de Sillín:
BMC RAD | Integrated Dropper Seatpost | 80mm Dropt
Sillín:
Fizik Antares R7
Transmisión
Platos y Bielas:
SHIMANO SLX FC-M7120-1
Platos:
34T
Potenciómetro:
Cassette:
SHIMANO Deore CS-M6100-12
Tamaño del cassette:
10-51T
Cadena:
SHIMANO CN-M6100
Desviador Delantero:
Cambio Trasero:
SHIMANO SLX RD-M7100
Manetas de Cambio:
SHIMANO Deore SL-M6100-IR
Marchas:
1 x 12
Pedalier:
PF92 Bottom Bracket
Frenos
Pinzas de Freno:
SHIMANO BL-M7100 Levers | BR-M7100 Calipers
Discos:
SHIMANO SM-RT66
Tamaño del disco:
160 / 160 S-M | 180 / 160 L-XL
Ruedas
Llantas:
SHL28OS | 25mm Inner Width
Bujes:
SHIMANO MT400 | MT410
Neumáticos:
Vittoria Barzo | 2.25"
Información adicional
Paso de rueda:
58mm
Peso sin pedales:
Clasificación ASTM:
Level 3
Límite de peso del sistema:
110kg
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 423 | 445 | 465 | 485 |
| Stack | 580 | 590 | 600 | 615 |
| Bar Drop | ||||
| Bar Reach | ||||
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8 | 8 | 8 | 8 |
| Bar Width | 760 | 760 | 760 | 760 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 44 | 44 | 44 | 44 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 170 | 175 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 506 | 506 | 506 | 506 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Frame Size | ||||
| Front Center | 700 | 726 | 750 | 777 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 96 | 107 | 117 | 134 |
| Head Tube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 429 | 429 | 429 | 429 |
| Saddle Height Range | ||||
| Seat Angle | 75.6 | 75.6 | 75.6 | 75.6 |
| Seat Tube | 420 | 440 | 480 | 510 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Seatpost Length | ||||
| Seatpost Offset | ||||
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | 738 | 747 | 759 | 768 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 582 | 607 | 630 | 654 |
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 106.5 | 106.5 | 106.5 | 106.5 |
| Wheelbase | 1129 | 1155 | 1180 | 1206 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
