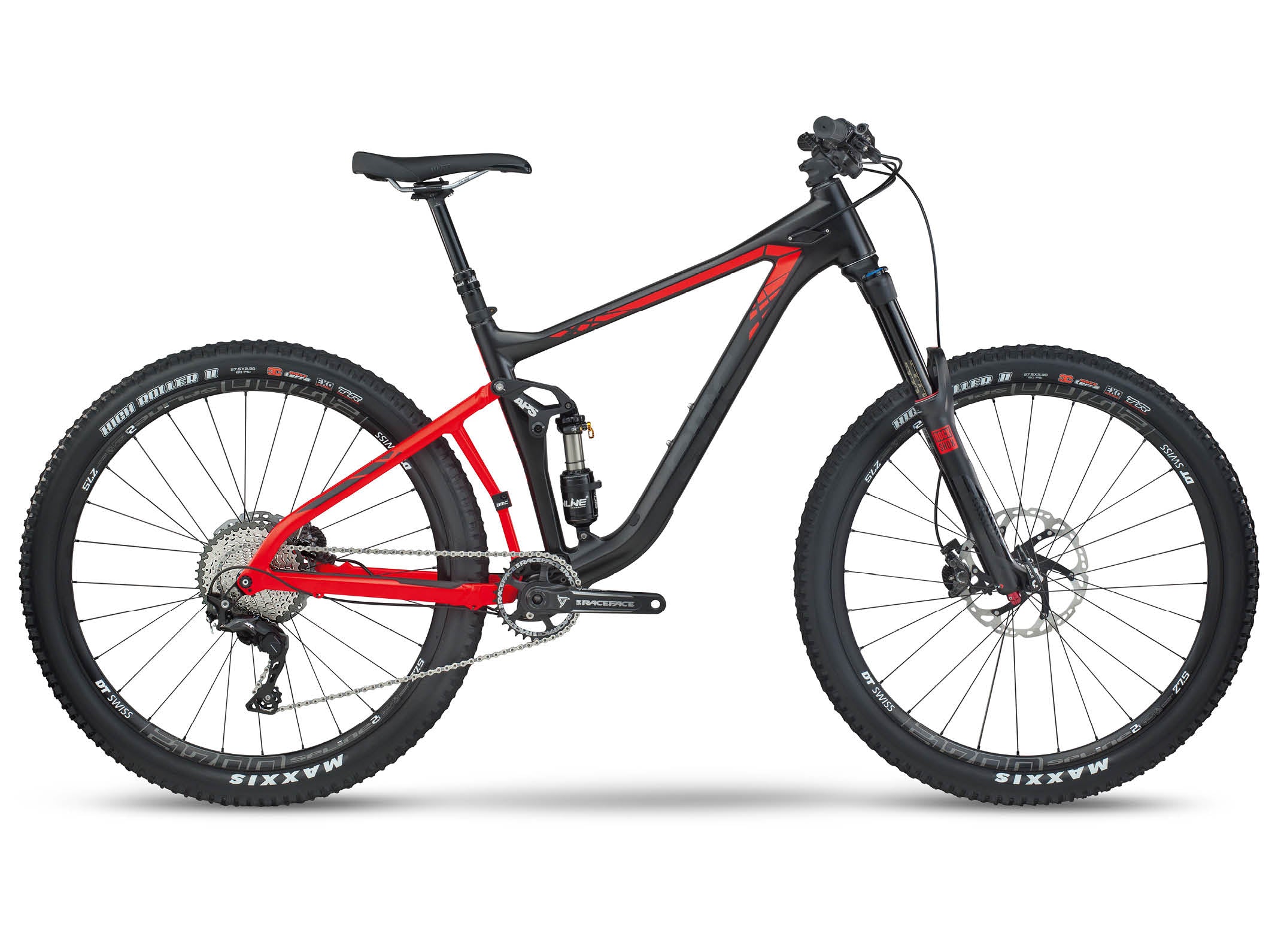

Name: Speedfox 02 XT
Brand: BMC
SKU: BMC-17a-000052-s0040
Availability: OutOfStock

Speedfox 02 XT | BMC | bikes | Mountain, Mountain | Trail

BMC Archive Product

Piezas y accesorios compatibles

Axle / Nut

CAD 138.00 Ver producto

D/T Protector VLF-327

CAD 34.00 Ver producto

Dropout - No 44

CAD 34.00 Ver producto

FD Cover

CAD 20.00 Ver producto

[{"id":47385889734976,"title":"XS","option1":"XS","option2":null,"option3":null,"sku":"BMC-17a-000052-s0040","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedfox 02 XT - XS","public_title":"XS","options":["XS"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47385890062656,"title":"S","option1":"S","option2":null,"option3":null,"sku":"BMC-17a-000052-s0050","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedfox 02 XT - S","public_title":"S","options":["S"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47385890390336,"title":"M","option1":"M","option2":null,"option3":null,"sku":"BMC-17a-000052-s0070","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedfox 02 XT - M","public_title":"M","options":["M"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47385890685248,"title":"L","option1":"L","option2":null,"option3":null,"sku":"BMC-17a-000052-s0090","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedfox 02 XT - L","public_title":"L","options":["L"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47385891012928,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"BMC-17a-000052-s0110","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedfox 02 XT - XL","public_title":"XL","options":["XL"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Descripción técnica

Cuadro

Cuadro:
Speedfox 02 29 - Advanced Pivot System | 01 Premium Carbon (F) - Al-13 Triple-butted aluminum (R)

Horquilla:
01 Premium Carbon (F) | Al-13 Triple-butted aluminum (R)

Cockpit

Manillar:
BMC MFB 02 | 750mm

Potencia:
BMC MSM 02

Tija de Sillín:
RockShox Reverb Stealth

Sillín:
WTB Volt Race

Transmisión

Marchas:
2 x 11

Platos y Bielas:
Shimano XT | 34-24T

Cassette:
Shimano XT | 11-40T

Cadena:
Shimano XT

Desviador Delantero:
Shimano XT

Cambio Trasero:
Shimano XT | Shadow Plus

Manetas de Cambio:
Shimano XT

Frenos

Pinzas de Freno:
Shimano XT (180/180mm)

Ruedas

Llantas:
DT Swiss M1700 Spline

Bujes:
DT Swiss M1700 Spline

Neumáticos:
Onza: Ibe x FRC 120 (F) / Canis FRC 60 (R) | 2.

Información adicional

Reglamento relativo a la seguridad general de los productos (GPSR):
Instrucciones de seguridad GPSR (UE)
Persona responsable según el GPSR (UE)

Size	XS	S	M	L	XL
Reach	395	415	435	455	475
Stack	598	602	607	612	616
Bar Rise	4	4	4	4	4
Bar Sweep	9	9	9	9	9
Bar Width	750	750	750	750	750
BB Drop	35	35	35	35	35
Crank Length	170	170	175	175	175
Fork Length	535	535	535	535	535
Fork Rake	51	51	51	51	51
Front Center	672	694	716	738	760
Head Tube	90	95	100	105	110
Head Tube Angle	68.5	68.5	68.5	68.5	68.5
Rear Center	435	435	435	435	435
Seat Angle	74	74	74	74	74
Seat Tube	390	420	460	500	530
Seatpost Length	100x355	125x380	150x430	150x430	150x430
Stem Angle	6	6	6	6	6
Stem Length	70	70	70	70	70
Top Tube	566	588	609	630	652
Trail	91	91	91	91	91
Wheelbase	1105	1127	1149	1171	1192
