Aperçu technique
Kit cadre
Cadre:

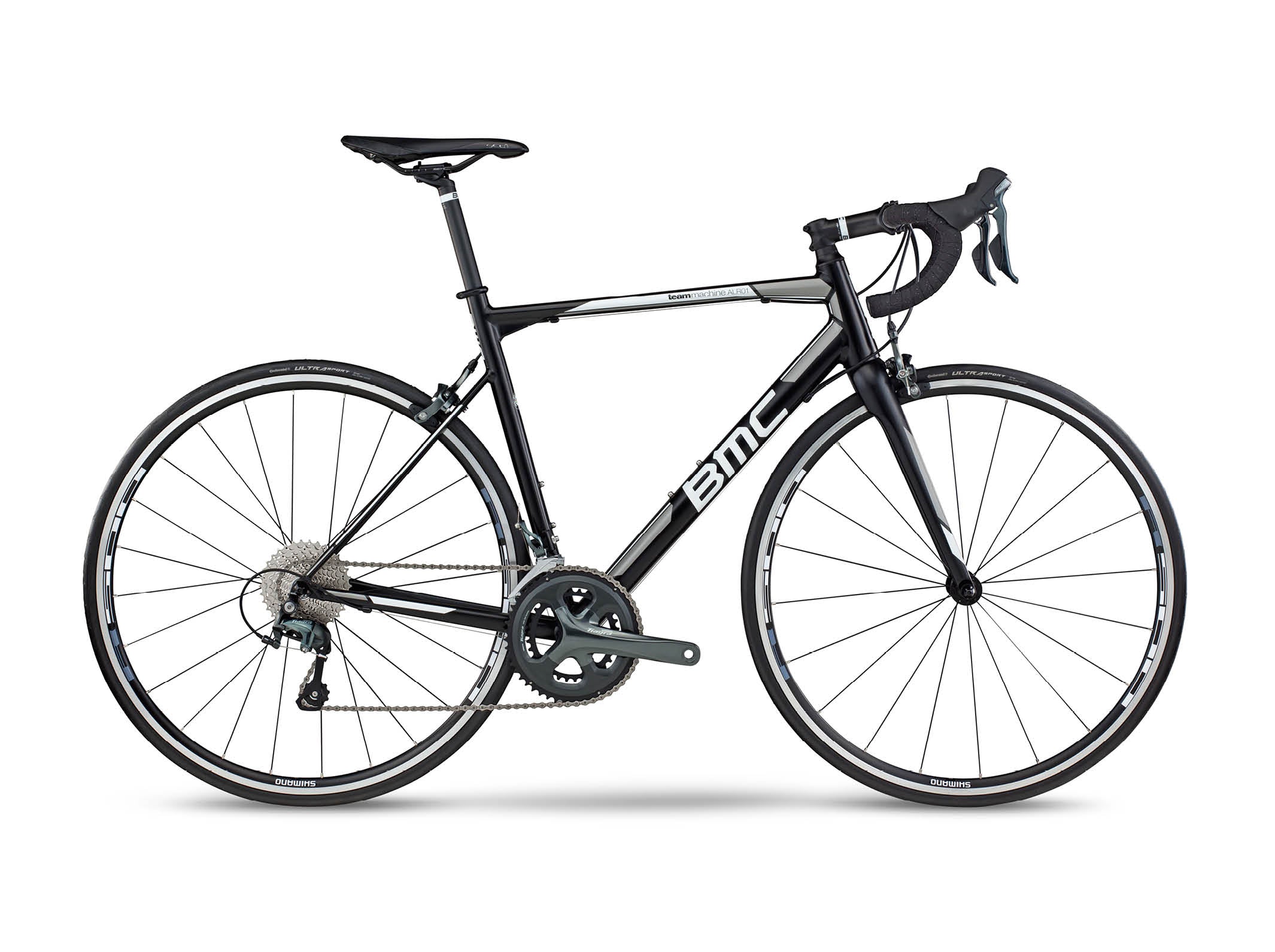

Teammachine ALR01 | Al-13 Premium Triple-butted - Hydroformed - Smooth-weld Aluminum
Fourche:
Al-13 Premium Triple-butted | Hydroformed | Smooth-weld Aluminum
Cockpit
Cintre:
BMC RAB 03
Potence:
BMC RSM 03
Tige de Selle:
BMC RSP 03
Selle:
Selle Royal Seta
Transmission
Vitesses:
2 x 11
Pédalier:
Shimano FC-RS500 | 50-34T
Cassette:
Shimano 105 | 11-32T
Chaîne:
Shimano 105
Dérailleur Avant:
Shimano Ultegra
Dérailleur Arrière:
Shimano Ultegra
Leviers de Vitesses:
Shimano Ultegra
Freins
Leviers de Frein / Étriers:
Shimano BR-R561
Roues
Jantes:
Shimano RS11
Moyeux:
Shimano RS11
Pneus:
Continental Ultra Sport II SL | 23mm
| Size | 47 | 51 | 54 | 57 | 60 |
|---|---|---|---|---|---|
| Rider Height | |||||
| Reach | 365 | 374 | 383 | 391 | 402 |
| Stack | 515 | 539 | 559 | 583 | 610 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | |||||
| Bar Sweep | |||||
| Bar Width | 400 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | |||||
| Base Bar Drop V-Cockpit | |||||
| Base Bar Reach Flat Cockpit | |||||
| Base Bar Reach V-Cockpit | |||||
| BB Drop | 69 | 69 | 69 | 69 | 69 |
| BB Drop (SLACK) | |||||
| BB Drop (STEEP) | |||||
| BB Height (SLACK) | |||||
| BB Height (STEEP) | |||||
| Chainstay | |||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| LT | BB Drop (SLACK) | |||||
| LT | BB Drop (STEEP) | |||||
| LT | BB Height (SLACK) | |||||
| LT | BB Height (STEEP) | |||||
| LT | Chainstay | |||||
| LT | Fork Length | |||||
| LT | Fork Rake | |||||
| LT | Frame Size | |||||
| LT | Front Center (SLACK) | |||||
| LT | Front Center (STEEP) | |||||
| LT | Head Tube | |||||
| LT | HT Angle (SLACK) | |||||
| LT | HT Angle (STEEP) | |||||
| LT | Reach (SLACK) | |||||
| LT | Reach (STEEP) | |||||
| LT | Rider Height | |||||
| LT | Seat Tube | |||||
| LT | ST Angle @750mm Saddle Height (SLACK) | |||||
| LT | ST Angle @750mm Saddle Height (STEEP) | |||||
| LT | ST Angle Actual (SLACK) | |||||
| LT | ST Angle Actual (STEEP) | |||||
| LT | ST Angle Effective (SLACK) | |||||
| LT | ST Angle Effective (STEEP) | |||||
| LT | Stack (SLACK) | |||||
| LT | Stack (STEEP) | |||||
| LT | Stand Over Height (80 in Front of BB) | |||||
| LT | Stand Over Height (Lowest Point) | |||||
| LT | Top Tube (SLACK) | |||||
| LT | Top Tube (STEEP) | |||||
| LT | Wheelbase (SLACK) | |||||
| LT | Wheelbase (STEEP) | |||||
| ST | BB Drop (SLACK) | |||||
| ST | BB Drop (STEEP) | |||||
| ST | BB Height (STACK) | |||||
| ST | BB Height (STEEP) | |||||
| ST | Chainstay | |||||
| ST | Fork Length | |||||
| ST | Fork Rake | |||||
| ST | Frame Size | |||||
| ST | Front Center (SLACK) | |||||
| ST | Front Center (STEEP) | |||||
| ST | Head Tube | |||||
| ST | HT Angle (SLACK) | |||||
| ST | HT Angle (STEEP) | |||||
| ST | Reach (SLACK) | |||||
| ST | Reach (STEEP) | |||||
| ST | Rider Height | |||||
| ST | Seat Tube | |||||
| ST | ST Angle @750mm Saddle Height (SLACK) | |||||
| ST | ST Angle @750mm Saddle Height (STEEP) | |||||
| ST | ST Angle Actual (SLACK) | |||||
| ST | ST Angle Actual (STEEP) | |||||
| ST | ST Angle Effective (SLACK) | |||||
| ST | ST Angle Effective (STEEP) | |||||
| ST | Stack (SLACK) | |||||
| ST | Stack (STEEP) | |||||
| ST | Stand Over Height (80 in Front of BB) | |||||
| ST | Stand Over Height (Lowest Point) | |||||
| ST | Top Tube (SLACK) | |||||
| ST | Top Tube (STEEP) | |||||
| ST | Wheelbase (SLACK) | |||||
| ST | Wheelbase (STEEP) | |||||
| Fork Length | 370 | 370 | 370 | 370 | 370 |
| Fork Rake | 41.6 | 41.6 | 41.6 | 41.6 | 41.6 |
| Frame Size | |||||
| Front Center | 571 | 575 | 586 | 600 | 620 |
| Front Center (SLACK) | |||||
| Front Center (STEEP) | |||||
| Head Tube | 118 | 138 | 158 | 181 | 211 |
| Head Tube Angle | 70.5 | 72 | 72.5 | 72.5 | 72.5 |
| HT Angle (SLACK) | |||||
| HT Angle (STEEP) | |||||
| Pad Reach Flat Cockpit | |||||
| Pad Reach V-Cockpit | |||||
| Pad Stack Flat Cockpit | |||||
| Pad Stack V-Cockpit | |||||
| Reach (SLACK) | |||||
| Reach (STEEP) | |||||
| Rear Center | 405 | 405 | 405 | 405 | 405 |
| Saddle Height Range | |||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 442 | 505 | 535 | 565 | 600 |
| Seatpost Drop | |||||
| Seatpost Length | 350 | 350 | 350 | 350 | 350 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | |||||
| ST Angle @750mm Saddle Height (STEEP) | |||||
| ST Angle Actual (SLACK) | |||||
| ST Angle Actual (STEEP) | |||||
| ST Angle Effective (SLACK) | |||||
| ST Angle Effective (STEEP) | |||||
| Stack (SLACK) | |||||
| Stack (STEEP) | |||||
| Stand Over Height (80 in Front of BB) | |||||
| Stand Over Height (Lowest Point) | |||||
| Standover Height | |||||
| Stem Angle | +/- 6 | +/- 6 | +/- 6 | +/- 6 | +/- 6 |
| Stem Length | 90 | 100 | 110 | 120 | 120 |
| Top Tube | 515 | 531 | 546 | 560 | 580 |
| Top Tube (SLACK) | |||||
| Top Tube (STEEP) | |||||
| Trail | 76 | 67 | 64 | 64 | 64 |
| Wheelbase | 966 | 970 | 980 | 996 | 1015 |
| Wheelbase (SLACK) | |||||
| Wheelbase (STEEP) |
