Technical Overview
Frameset
Frame:

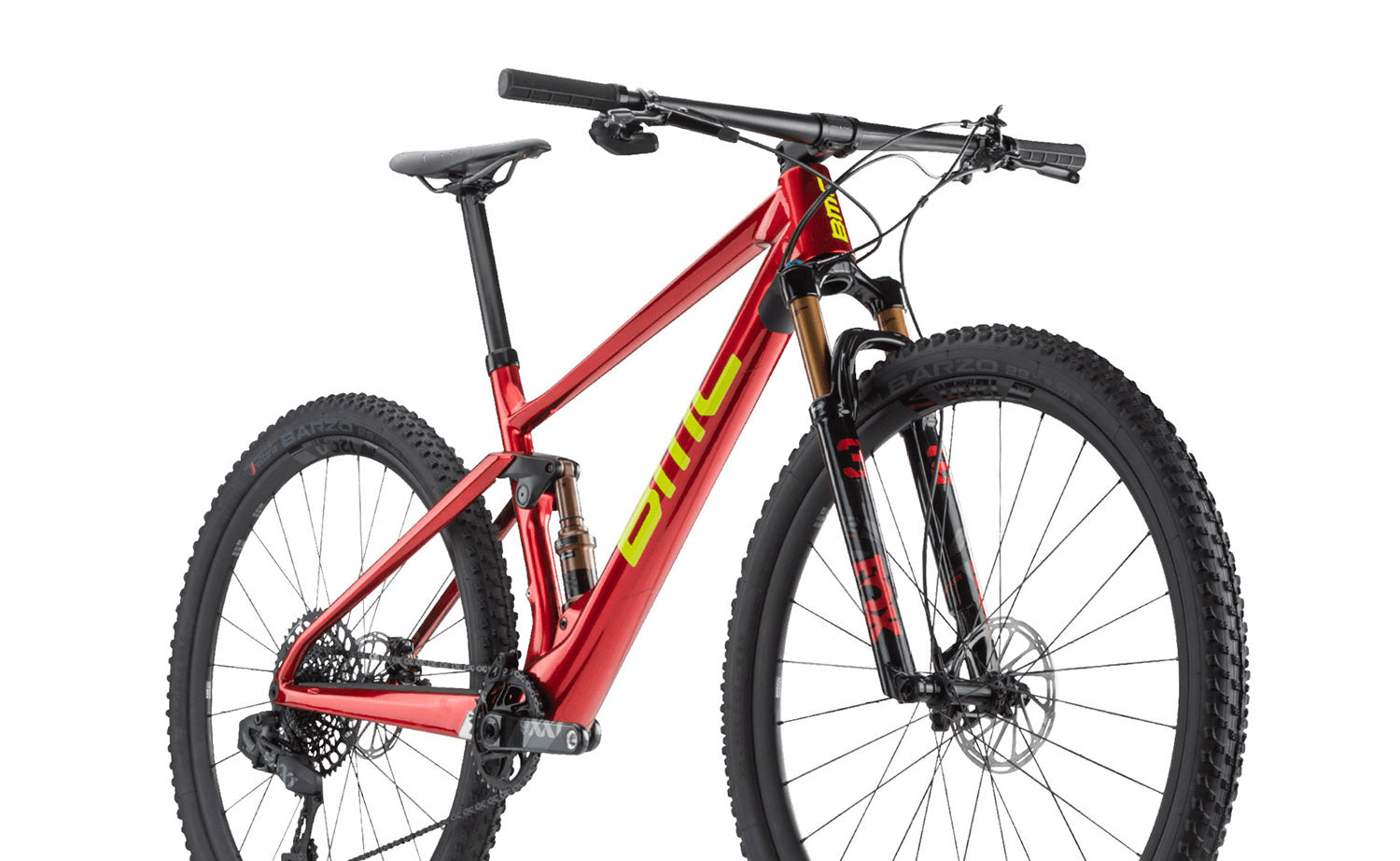

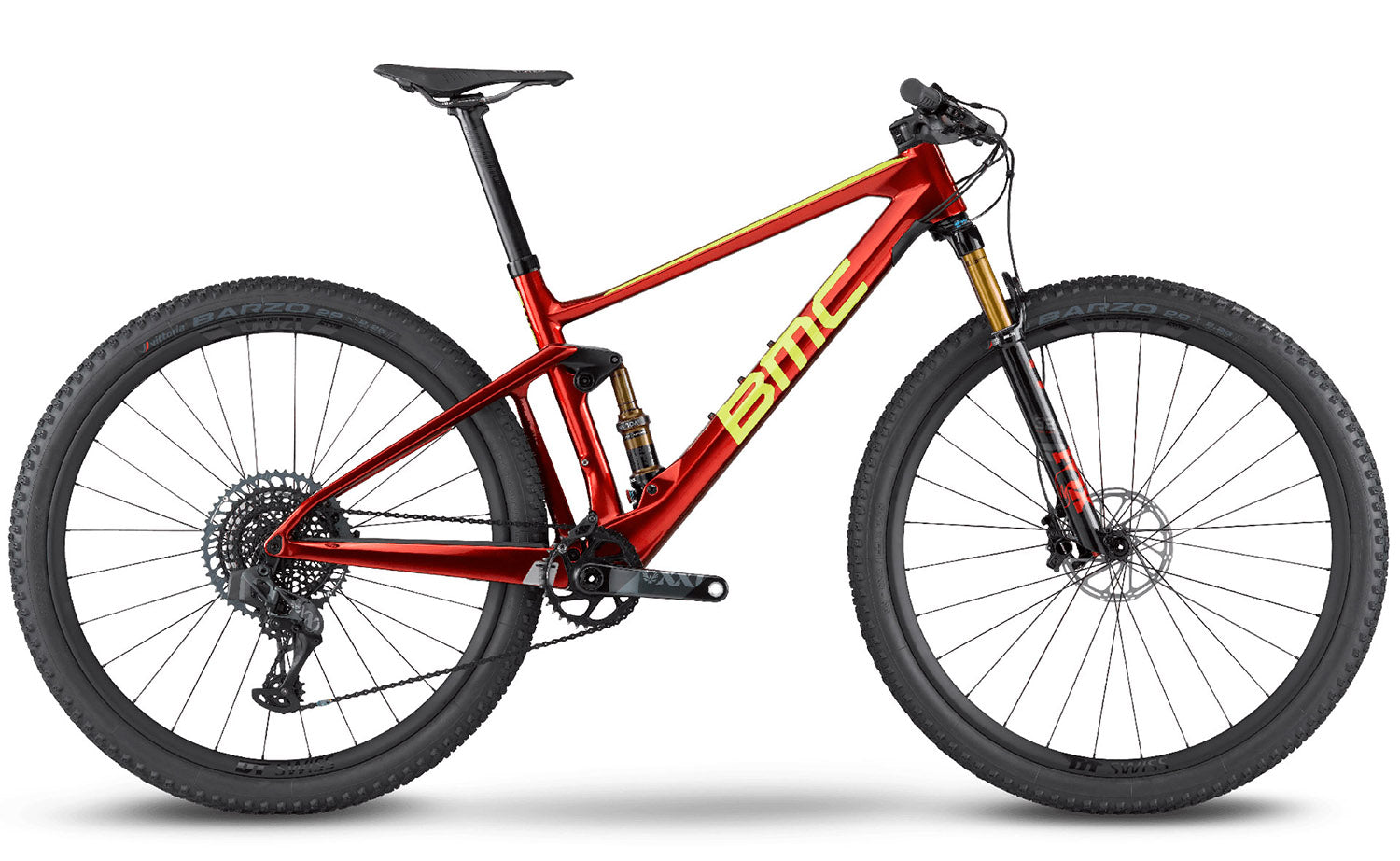

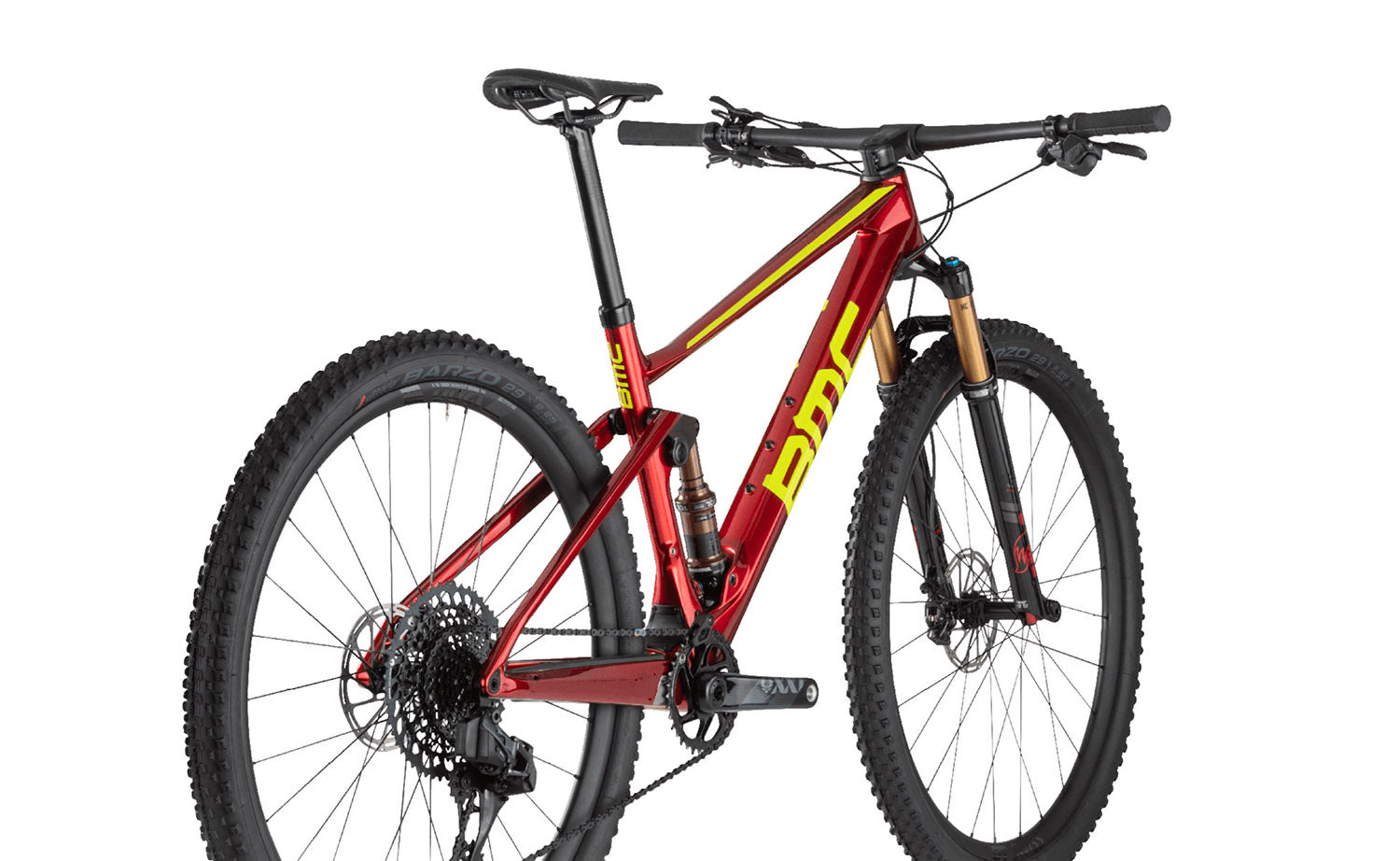

Fourstroke 01 Premium Carbon with APS Suspension System 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Fork:
Suspension
Front Suspension:
Fox Float 32 SC Factory
Rear Suspension:
Fox Float DPS Factory
Remote Lockout:
Cockpit
Stem:
BMC MSM 01
Handlebar:
BMC MFB 01 Carbon | 760mm
Grips:
Seat
Seatpost:
BMC RAD | Integrated Dropper Seatpost | 80mm Drop
Saddle:
Fizik Antares R5 Kium
Drivetrain
"
Crankset:
#spec_crankset
Chainrings:
SRAM XX1 Eaglerings
Power Meter:
#spec_power_meter
Cassette:
#spec_cassette
Cassette Size:
#spec_cassette_size
Chain:
#spec_chain
Front Derailleur:
Rear Derailleur:
SRAM XX1 Eagle AXS
Shifters:
SRAM AXS Controller
Gears:
1 x 12
Bottom Bracket:
PF92 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Level Ultimate
Rotors:
SRAM Centerline Rotors
Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL
Wheels
Rims:
DT Swiss XRC 1200 | 25mm Inner Width
Hubs (F/R):
DT Swiss 180 Straightpull | Ratchet EXP 36
Tires:
Vittoria Barzo | 2.25"
Additional Information
Tire Clearance:
58mm
Weight without Pedals:
ASTM Classification:
Level 3
System Weight Limit:
110kg
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 423 | 445 | 465 | 485 |
| Stack | 580 | 590 | 600 | 615 |
| Bar Drop | ||||
| Bar Reach | ||||
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8 | 8 | 8 | 8 |
| Bar Width | 760 | 760 | 760 | 760 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 44 | 44 | 44 | 44 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 170 | 175 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 506 | 506 | 506 | 506 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Frame Size | ||||
| Front Center | 700 | 726 | 750 | 777 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 96 | 107 | 117 | 134 |
| Head Tube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 429 | 429 | 429 | 429 |
| Saddle Height Range | ||||
| Seat Angle | 75.6 | 75.6 | 75.6 | 75.6 |
| Seat Tube | 420 | 440 | 480 | 510 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Seatpost Length | ||||
| Seatpost Offset | ||||
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | 738 | 747 | 759 | 768 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 582 | 607 | 630 | 654 |
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 106.5 | 106.5 | 106.5 | 106.5 |
| Wheelbase | 1129 | 1155 | 1180 | 1206 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
