Name: Roadmachine 01 THREE
Brand: BMC
SKU: 30005219
Price: 11899.0 CAD
Availability: OutOfStock

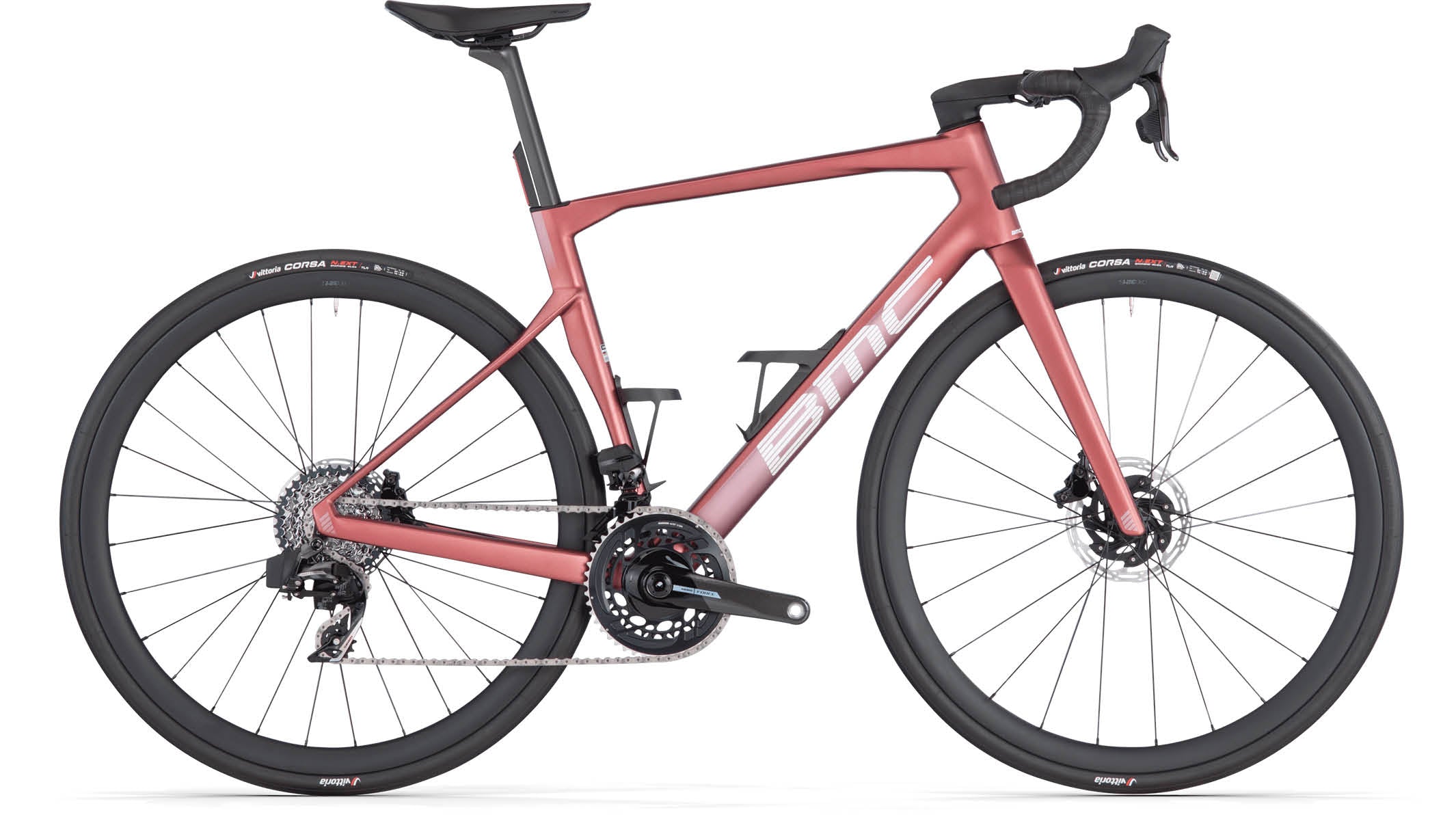

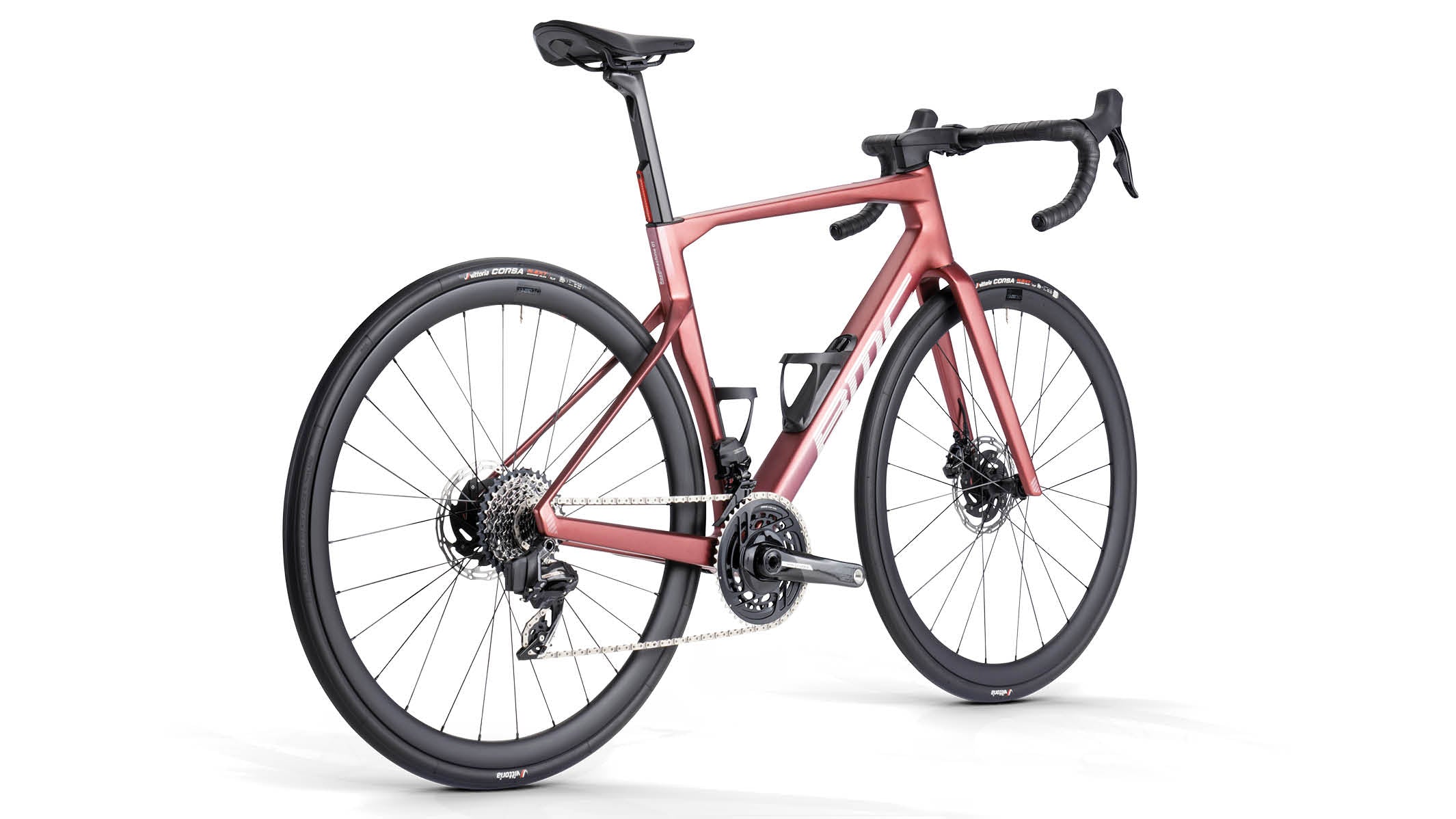

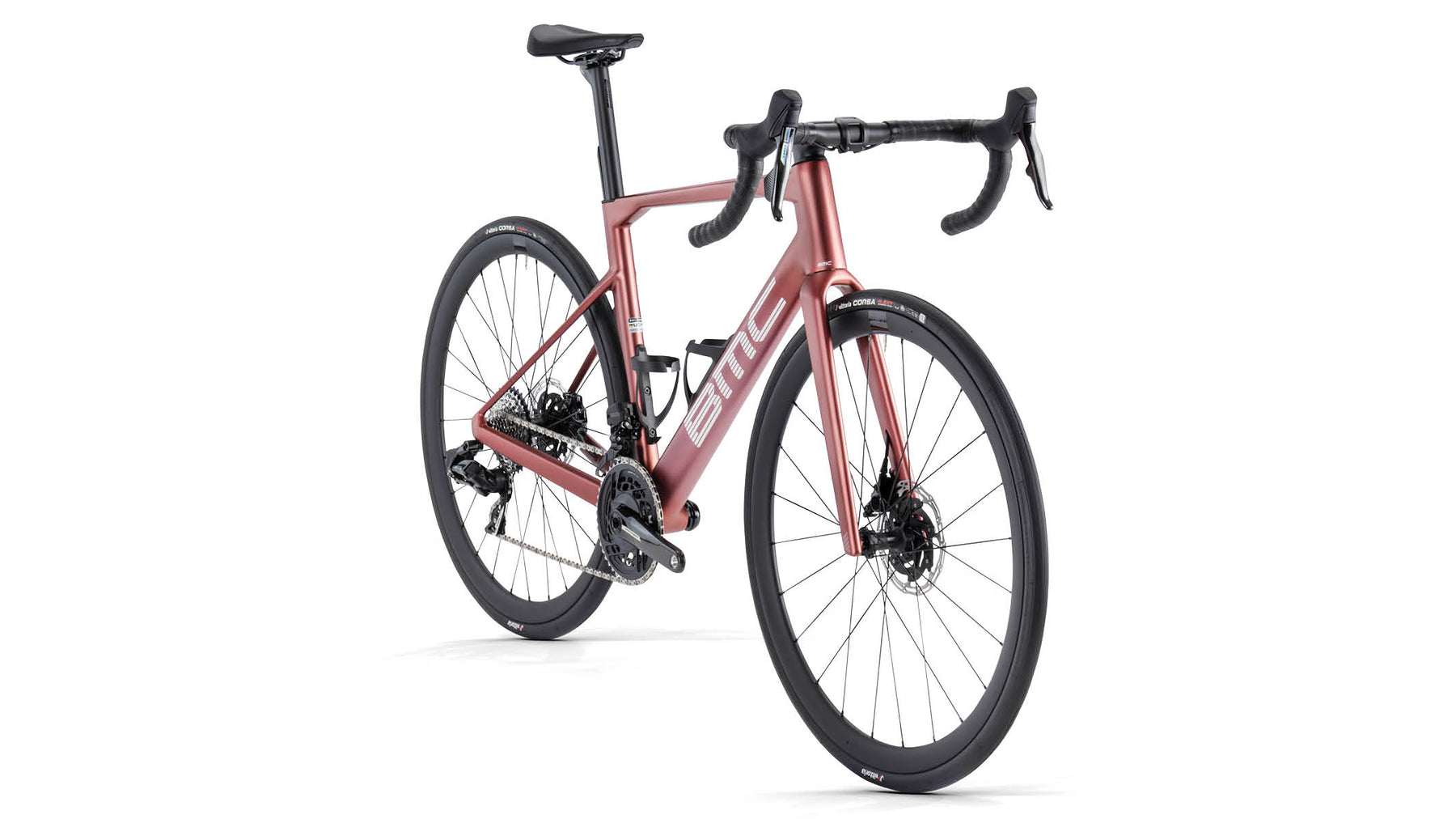

Roadmachine 01 THREE | BMC | bikes | Road, Road | Endurance

Metallic Red Brown / White

SRAM Force eTap AXS Drivetrain
CRD-321 SL Carbon Wheelset
ICS2 Integrated Cockpit System Technology

CAD 11,899.00

SKU: 30005219

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network.

[{"id":47340468633920,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005218","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 THREE - 47","public_title":"47","options":["47"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906507872","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340468797760,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005219","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 THREE - 51","public_title":"51","options":["51"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906507964","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340468928832,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005220","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 THREE - 54","public_title":"54","options":["54"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906508053","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340468994368,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005221","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 THREE - 56","public_title":"56","options":["56"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906508046","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340469158208,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005222","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 THREE - 58","public_title":"58","options":["58"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906508039","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340469453120,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005223","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 THREE - 61","public_title":"61","options":["61"],"price":1189900,"weight":15000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906508022","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

The all-new Roadmachine 01 is faster than ever while still entirely appropriate for every surface. The Roadmachine 01 THREE features Stealth Cable Routing, built-in downtube storage, ICS2 stem and carbon bar combination, complimented with SRAM Force AXS groupset and CRD-321 Carbon Wheelset with road-smoothening 30 mm tires.

Technology

Downtube Storage with Integrated Bottle Cages

We obsessed every detail of the downtube to optimally integrate internal storage. Inside, there’s a purpose-designed water-repellent pouch for on-ride carry. Neatly sealed under drag-reducing bottle cages.

ICS2 Stem

The ICS2 stem is designed for complete stack and reach adjustability, allowing you to create the perfect position for your perfect ride. Bringing an incredibly low weight, high stiffness, stealth cable routing and further integration.

Integrated Rear Light

As you encounter traffic, tunnels and changing conditions, you need an ultra-compact, integrated rear light that’s USB chargeable and easily attached/detached from the seatpost.

TCC Endurance

The Roadmachine takes our TCC Endurance vision further with big wheel capabilities, a dropped BB, adapted head tube angle, increased stack, and one of the industry’s smallest rear centers for a responsive ride.

Technical Overview

Frameset

Frame:
Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon

Seat

Seatpost:
Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Argo Tempo R5 | 150mm

Drivetrain

Crankset:
SRAM Force

Chainrings:
46-33T

Cassette:
SRAM Force XG-1270

Cassette Size:
10-36T

Chain:
SRAM Apex

Front Derailleur:
SRAM Force eTap AXS

Rear Derailleur:
SRAM Force eTap AXS

Shifters:
SRAM Force eTap AXS

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS

Rotors:
SRAM Centerline X

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-321 SL Carbon | Tubeless Ready | 35mm

Hubs (F/R):
CRD-321 SL

Tires:
Vittoria Corsa N.EXT G2.0 | TLR (Tubeless Ready) | 30mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Integrated Rear Light 20 | Roadmachine Bottle Cages | Storage Pouch

Additional Information

Tire Clearance:
40mm

Weight without Pedals:
7.8 Kg

ASTM Classification:
Level 2

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<160	158-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	127	127	127	127	127	127
Bar Reach	67	67	67	67	67	67
Bar Width	400	420	420	420	420	420
BB Drop	75	75	75	75	75	75
Crank Length	170	170	172.5	172.5	175	175
Fork Length	379	379	379	379	379	379
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4	71.4	72.2	72.2	72.2	72.2
Rear Center	415	415	415	415	415	415
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	414	461	488	508	529	550
Seatpost Length	330	380	380	380	380	430
Seatpost Offset	15	15	15	15	15	15
Standover Height	726	762	786	807	828	849
Stem Angle	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Stem Length	90	100	100	110	110	120
Top Tube	520	537	546	559	571	581
Trail	63	63	63	63	63	63
Wheelbase	982	1000	997	1010	1023	1036
