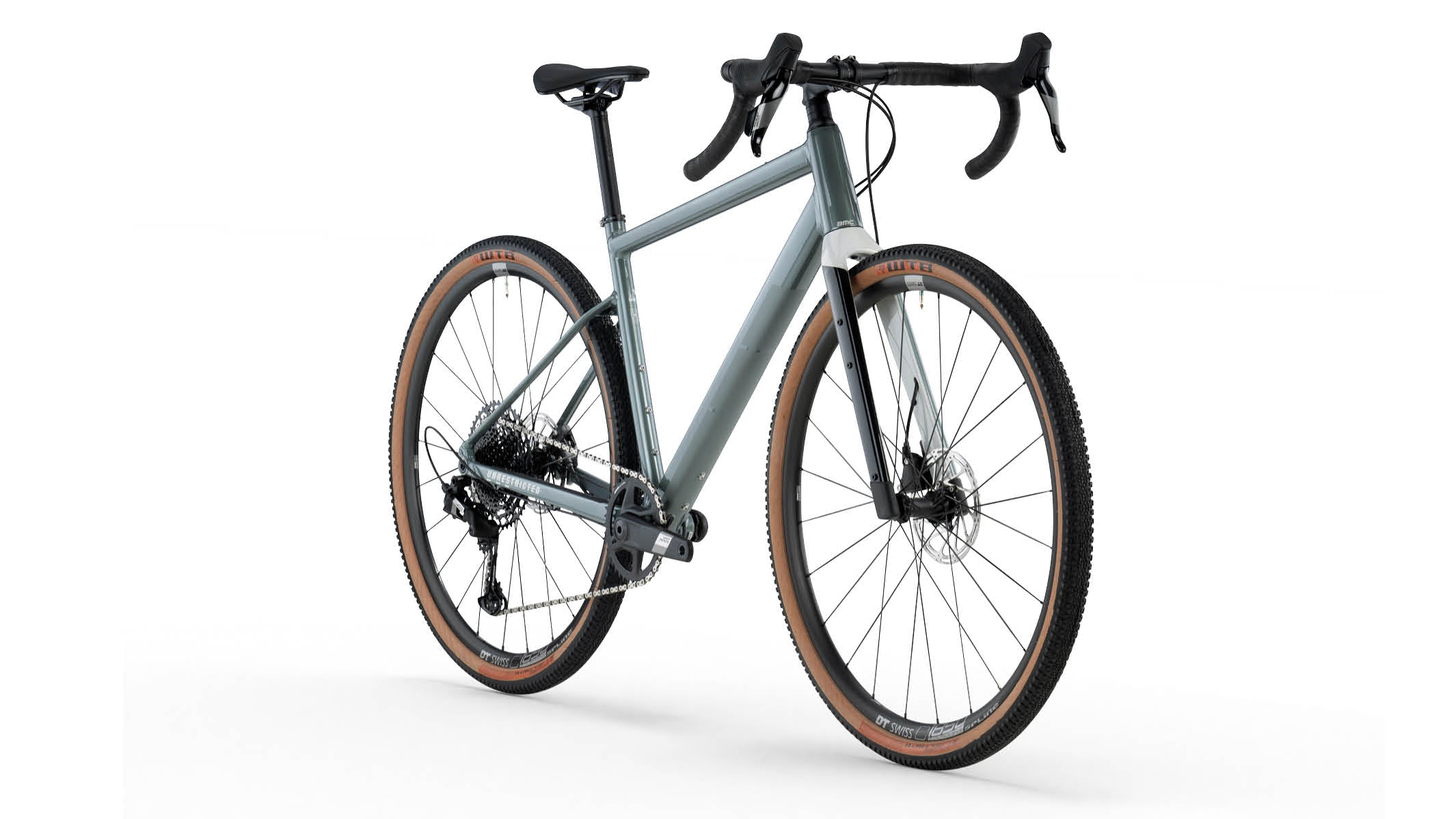

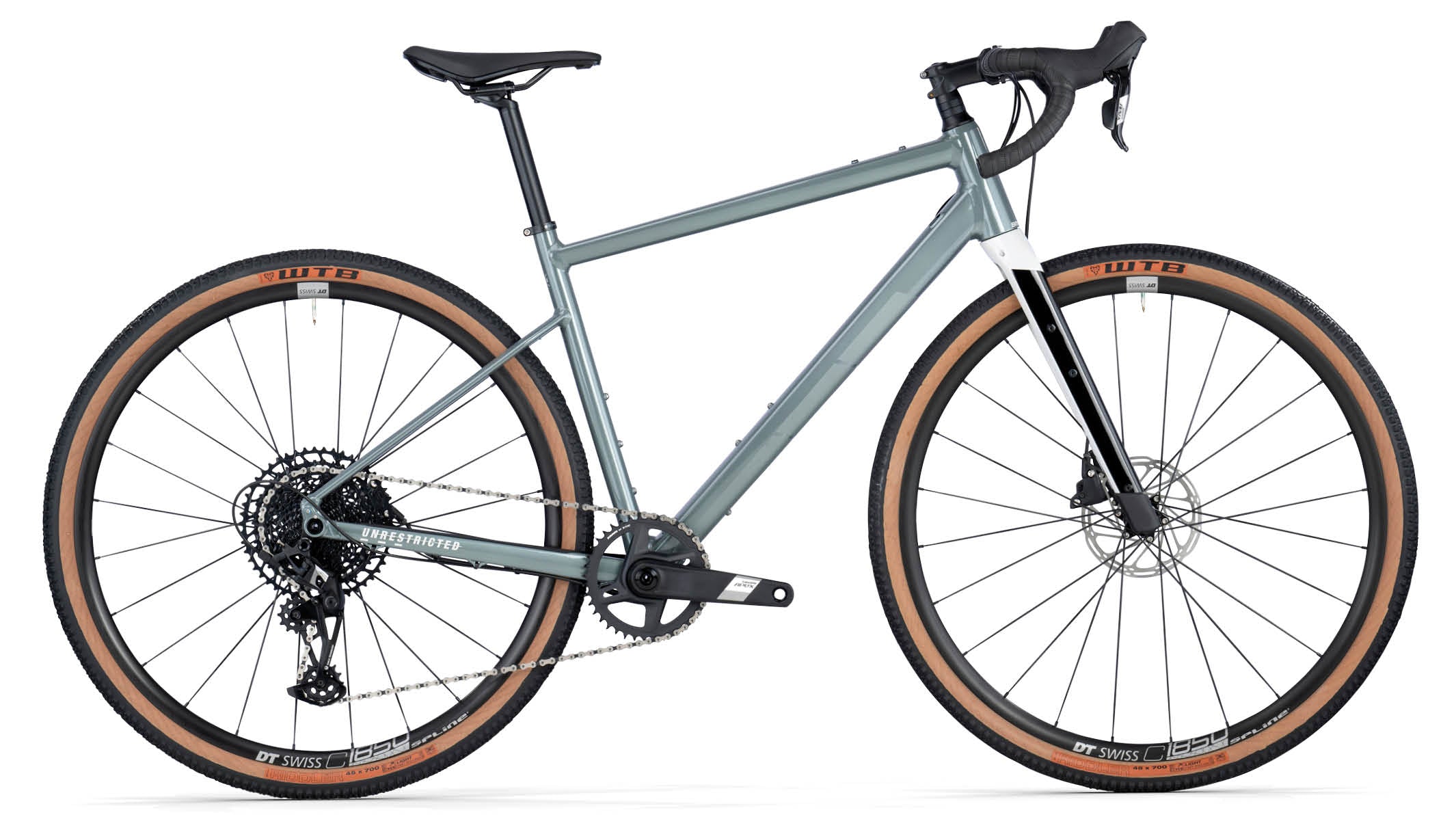

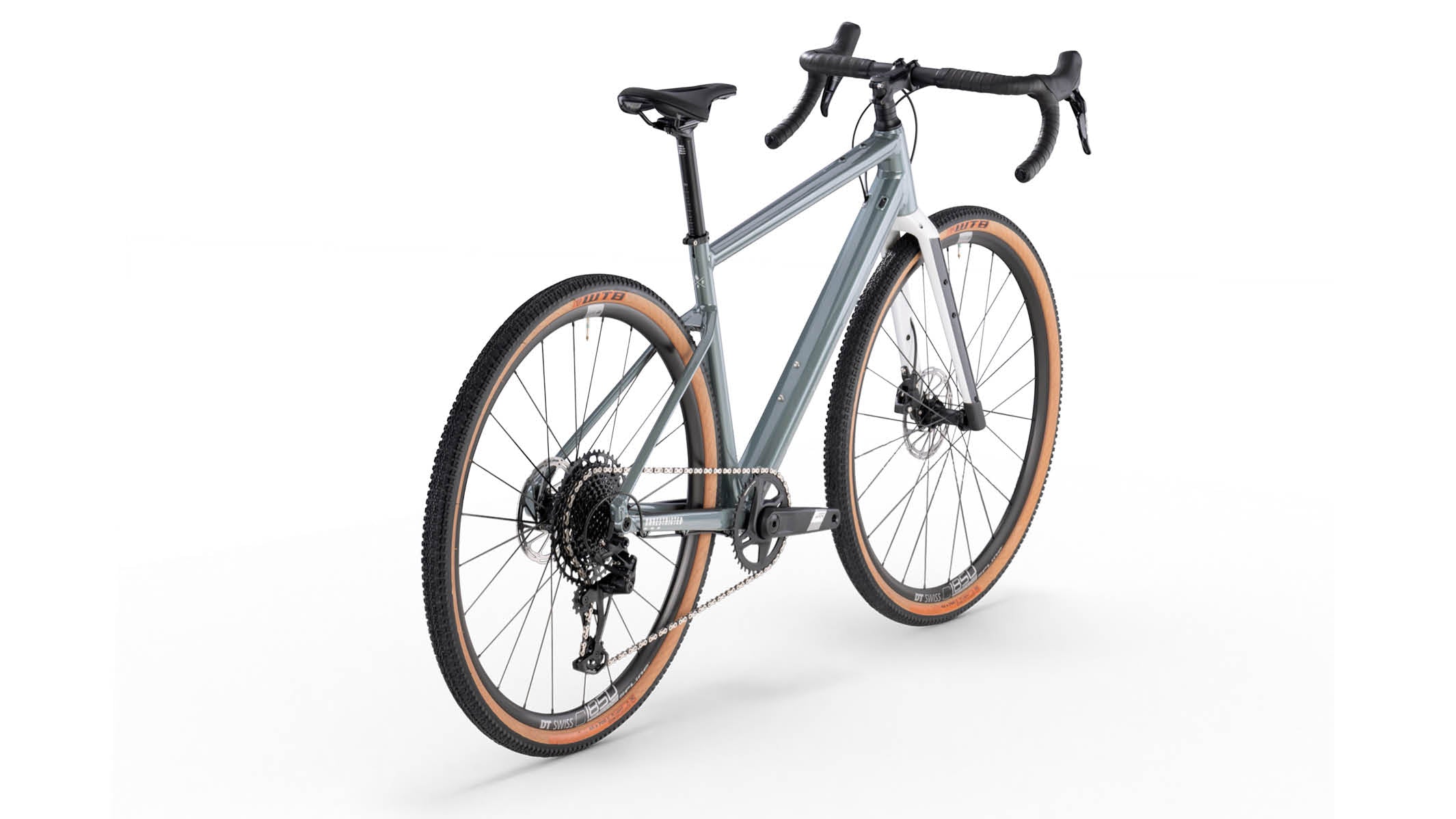

URS AL ONE

Metallic Grey Green / White
SRAM APEX
PRD23 Wheelset
Fender, Rack and Cargo Mounts
CAD 4,299.00
CAD /
SKU: 30004983
Size

URS AL ONE

Parts & Accessories

  • Shipped to your local bike shop
URS AL ONE is the bicycle equivalent of a chameleon, able to adapt and perfectly fit in to diverse surroundings. Maintaining the URS family’s ride and handling characteristics, and offering even greater practicality, through additional cargo mounts and dropper post compatibility, it’s your bike for all reasons. The TCC Gravel Premium Aluminium frame and carbon fork are matched with the latest SRAM Apex 1x12 groupset, PRD23 wheelset and 45mm wide WTB tires.

Technical Overview

Frameset

Frame:
URS Premium Aluminium with Tuned Compliance Concept Gravel | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
URS Carbon with Tuned Compliance Concept Gravel | Internal Brake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | Side Mounts

Cockpit

Stem:
BMC MSM 02

Handlebar:
BMC RAB

Seat

Seatpost:
BMC RSP 03

Saddle:
Selle Royal

Drivetrain

Crankset:
SRAM Apex 1 DUB WIDE

Chainrings:
SRAM GX Eaglerings

Cassette:
SRAM Apex Eagle

Cassette Size:
11-50T

Chain:
SRAM GX Eagle

Rear Derailleur:
SRAM Apex Eagle

Shifters:
SRAM Apex

Gears:
1 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Apex

Rotors:
SRAM Centerline | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
PRD23 | 23mm

Hubs (F/R):
CL-712 (F) | RXC-1425 (R) | Thru-Axle

Tires:
WTB Riddler | 45mm

Additional Information

Tire Clearance:
45mm

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size XS S M L XL
Rider Height < 165 162 - 172 170 - 182 180 - 192 >190
Reach 390 400 410 420 430
Stack 525 550 580 610 640
Bar Drop 130 130 130 130 130
Bar Reach 70 70 70 70 70
Bar Width 420 420 420 440 440
BB Drop 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175
Fork Length 410 410 410 410 410
Fork Rake 45 45 45 45 45
Front Center 608 626 647 668 689
Head Tube 92 118 150 182 214
Head Tube Angle 70 70 70 70 70
Rear Center 430 430 430 430 430
Seat Angle 74 74 74 74 74
Seat Tube 430 445 475 505 540
Seatpost Length 350 350 350 350 350
Seatpost Offset 15 15 15 15 15
Standover Height 720 738 768 797 830
Stem Angle ±6 ±6 ±6 ±6 ±6
Stem Length 70 70 70 80 80
Top Tube 540 558 576 595 614
Trail 78 78 78 78 78
Wheelbase 1028 1047 1068 1089 1110
